Electric Chain Block
  • Electric Chain BlockElectric Chain Block
  • Electric Chain BlockElectric Chain Block
  • Electric Chain BlockElectric Chain Block
  • Electric Chain BlockElectric Chain Block
  • Electric Chain BlockElectric Chain Block

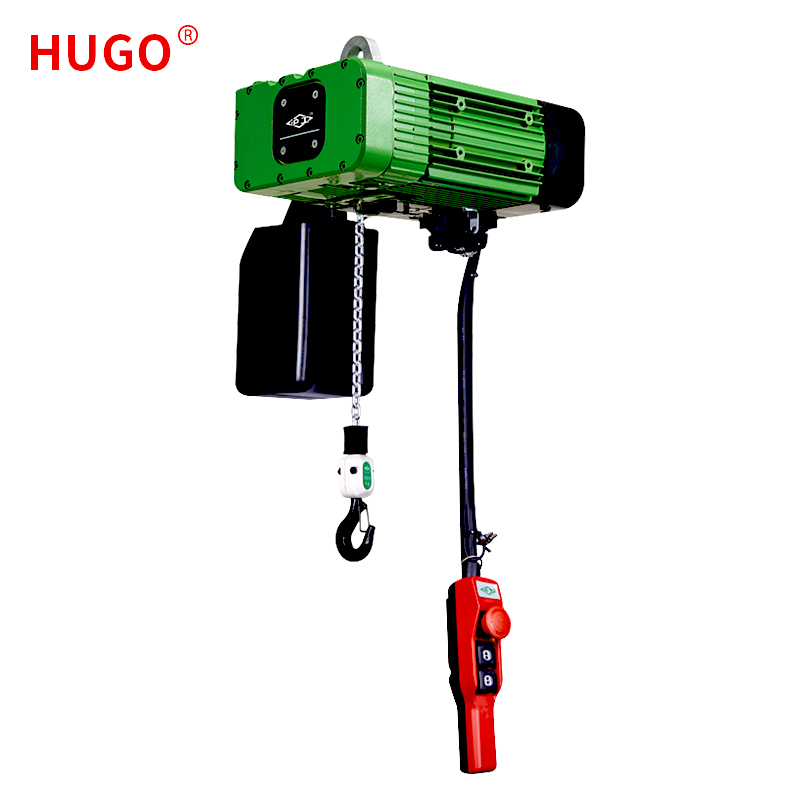

Electric Chain Block

The Electric Chain Block represents a compact and lightweight lifting apparatus. Its composition includes a motor, transmission mechanism, and sprocket. These electric chain hoists are manufactured in adherence to global standards, boasting an aesthetically pleasing and robust exterior. Internally, the gears undergo high-temperature quenching, enhancing their durability and toughness against wear. This hoist incorporates cutting-edge technology, featuring meticulous craftsmanship and precise gear fitting, showcasing an integration of the world's most advanced methodologies.

Send Inquiry    PDF DownLoad

Product Description


The Electric Chain Block is a compact and lightweight lifting device comprised of a motor, transmission mechanism, and sprocket. With a lifting capacity ranging from 0.1 to 60 tons and lifting heights spanning 4 to 20 meters, it finds extensive application across various industries such as docks, factories, warehouses, construction sites, and assembly line productions.

Its standout features include a small footprint, lightweight design, user-friendly operation, convenience, safety, and robust durability. This hoist serves as an excellent tool for lifting goods, handling workpieces during loading and unloading, and equipment maintenance and repairs. Installation possibilities encompass suspended I-beams, flexible rails, cantilever guide rails, and fixed lifting points, enabling efficient goods transportation. It excels in settings where erecting bridge cranes isn't feasible due to low ceilings or spatial constraints, distinguishing itself from wire rope electric hoists in terms of versatility.

Most electric chain hoists are operated by individuals using ground-level buttons, offering the flexibility of control from a control room or via wired (or wireless) remote control. Additionally, these hoists can be utilized not only for stationary suspension but also equipped with electric running trolleys or hand-push and hand-pull trolleys for enhanced mobility and adaptability.



Product Specification

Model

0.5-01s

01-01s

01-02s

02-01s

02-02s

03-01s

03-02s

03-03s

05-02s

Capacity(ton)

0.5

1

1

2

2

3

3

3

5

Lifting speed(m/min)

7.2

6.8

3.6

6.6

3.4

5.6

3.3

2.2

2.8

MotorPower(kw)

1.1

1.5

1.1

3.0

1.5

3.0

3.0

1.5

3.0

Ratation Speed(r/min)

1440

Insulation Grade

F level

Travelling Speed(m/min)

Slow 11m/min &Fast 21m/min

Power supply

3-phase 380V 50HZ

Control Voltage

24V 36V 48V

No.of load Chain

1

1

2

1

2

1

2

3

2

Spec Load chain(mm)

6.3

7.1

6.3

10

7.1

11.2

10

7.1

11.2

Net Weight(kg)

47

65

53

108

73

115

131

85

145

I -beam(mm)

75-125

75-178

75-178

82-178

82-178

100-178

100-1788

100-178

112-178


Feature And Application


The Electric Chain Block is extensively employed across diverse industries including docks, factories, warehouses, construction sites, and assembly line production activities. Its defining attributes consist of compactness, lightness, user-friendly operation, convenience, safety, and long-lasting durability. These features collectively position it as an optimal tool for lifting goods, handling workpieces during loading and unloading, as well as equipment maintenance and repair tasks. This equipment can be effortlessly mounted onto suspended I-beams, flexible rails, cantilever guide rails, and fixed lifting points, facilitating the swift transportation of goods. Its versatility shines particularly in low-ceiling workshops or areas where installing bridge cranes isn't feasible, offering a practical alternative to wire rope electric hoists. Furthermore, it accommodates usage in spacious settings due to its adaptability and scalability.



Product Details

Electric Chain Block is made of light aluminum alloy shell,light but hard,the cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuously service

Electric Chain Block

Electric Chain Block is made of low-carbon alloy steel, which makes the chain more tough, stronger and more wear-resistant, ensuring safety during work.

Electric Chain Block

Electric Chain Block has a limit switch device, and there are limit switch devices on the upper and lower sides of the hoist. The automatic stop is used to prevent the chain from exceeding and ensure safety

Electric Chain Block

Electric Chain Block hook is hot forged, with excellent strength and not easy to break. It is equipped with a safety tongue to ensure safety.

Electric Chain Block
