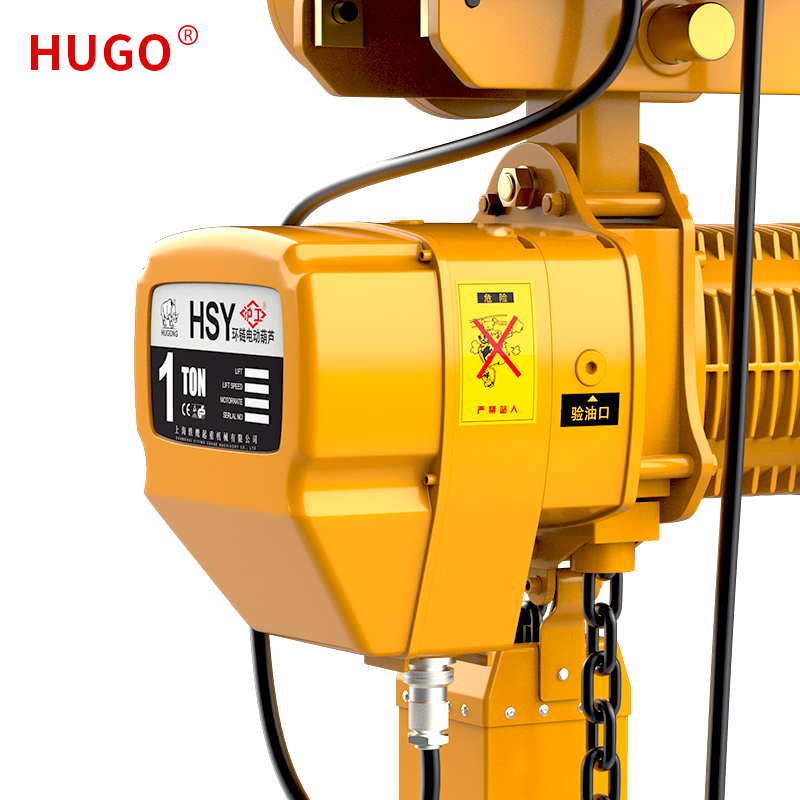

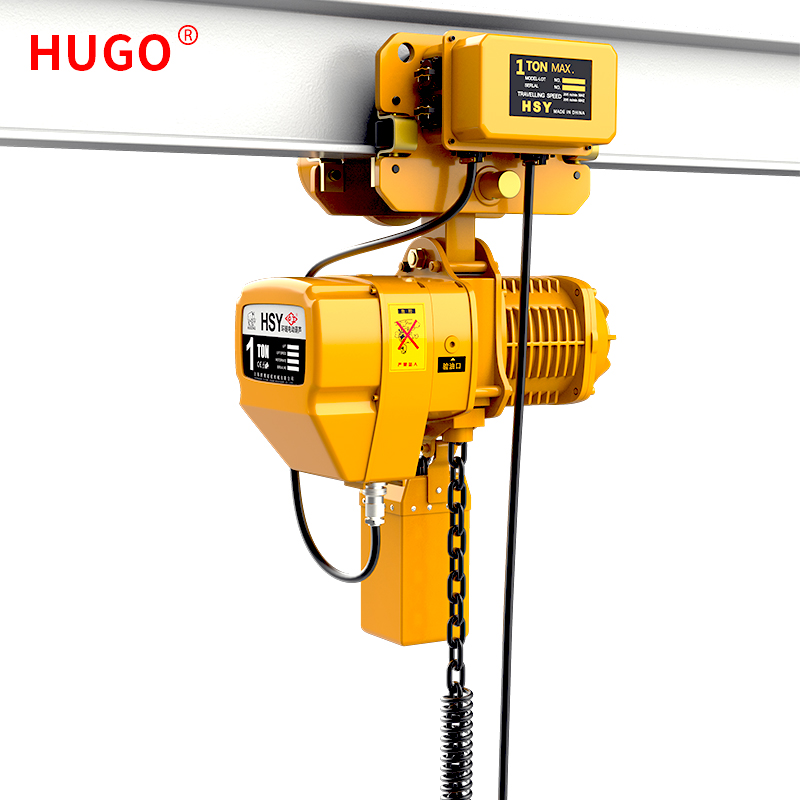

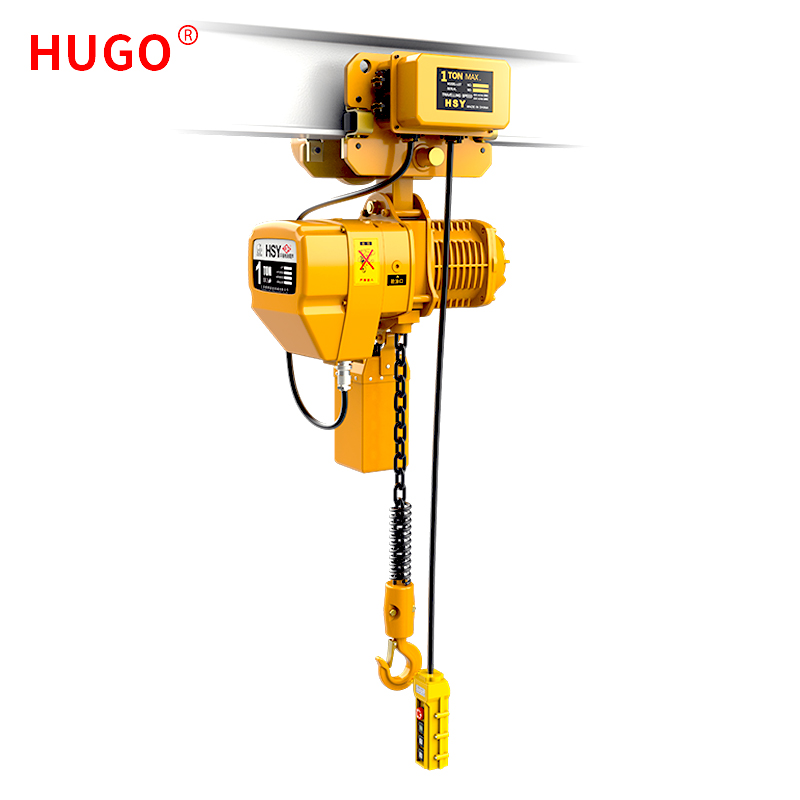

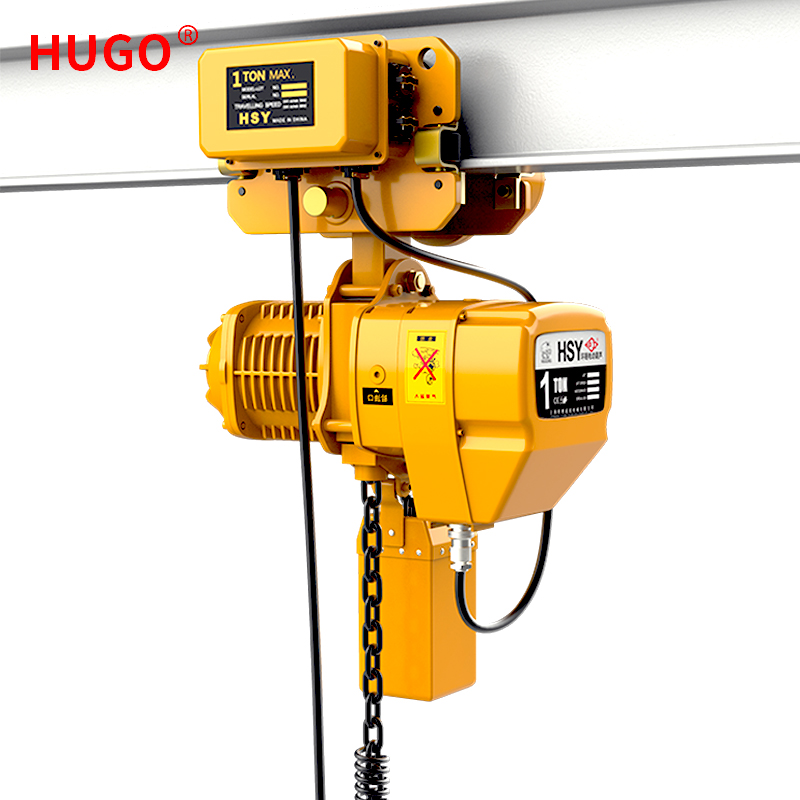

Our Electric Hoist 1 Ton is designed to provide exceptional performance and reliability, making it an ideal choice for a wide range of applications in industries such as construction, manufacturing and logistics. Its compact size and lightweight design make it easy to install and use, while the powerful motor ensures efficient and effective lifting.
Our Electric Hoist 1 Ton is designed to provide exceptional performance and reliability, making it an ideal choice for a wide range of applications in industries such as construction, manufacturing and logistics. Its compact size and lightweight design make it easy to install and use, while the powerful motor ensures efficient and effective lifting.
Model |
0.5-01S |
01-01S |
01-02S |
02-01S |
02-02S |
03-01S |
03-02S |
03-03S |
05-02S |
Capacity |
0.5 |
1 |
1 |
2 |
2 |
3 |
3 |
3 |
5 |
Lifting Speed |
7.2 |
6.8 |
3.6 |
8.8 |
6.6 |
3.4 |
5.6 |
5.6 |
2.8 |
Motor Power |
1.1 |
1.5 |
1.1 |
3.0 |
1.5 |
3.0 |
3.0 |
1.5 |
3.0 |
Rotation speed |
1440 |
||||||||
Insulation Grade |
F Level |
||||||||
Traveling Speed |
Slow 11m/min &Fast 21m/min |
||||||||
Power supply |
3-phase 380V 50HZ |
||||||||
Control Voltage |
24V 36V 48V |
||||||||
NO. Of load chain |
1 |
1 |
2 |
1 |
2 |
1 |
2 |
3 |
2 |
Spec. Of load chain |
6.3 |
7.1 |
6.3 |
10.0 |
7.1 |
11.2 |
10.0 |
7.1 |
11.2 |
Net Weight |
47 |
65 |
53 |
108 |
73 |
115 |
131 |
85 |
145 |
I-Beam |
75-125 |
75-178 |
75-178 |
82-178 |
82-178 |
100-178 |
100-178 |
100-178 |
112-178 |
Our Electric Hoist 1 Ton is designed to provide exceptional performance and reliability, making it an ideal choice for a wide range of applications in industries such as construction, manufacturing and logistics. Its compact size and lightweight design make it easy to install and use, while the powerful motor ensures efficient and effective lifting.
With a lifting capacity of 1 ton, this electric hoist is perfect for lifting heavy objects such as machinery and equipment, construction materials, and more. The hoist's precision braking system ensures that loads can be safely and securely lifted or lowered without the risk of accidents.
The electric hoist 1 Ton is equipped with a double brake system, and is also equipped with a pound magnetic brake and a mechanical brake. It can be stopped immediately when the goods are required to stop, which is safer.
The shell of electric hoist 1 Ton is an aluminum alloy shell, which is solid and light, and dissipates heat quickly. Supports continuous use, and the efficiency is as high as 40%. There is a sealed structure to protect the inner motor.
The electric hoist 1 Ton is equipped with a limit switch, which automatically stops when the goods are pulled to the top to prevent impact on the hoist and damage to the hoist. It stops automatically when it is at the bottom to prevent the chain from exceeding.
The product adopts G80 manganese steel chain, which has four times the breaking force, which is less likely to break when lifting the goods, and the safety factor is higher.
The rubber-coated handle of electric hoist 1 Ton is waterproof, and the texture is light and durable. It is equipped with an emergency stop button, which can make the machine stop operation in case of sudden problems.
The hook of electric hoist 1 Ton uses forging technology, the safety factor is 1.25 times, and it can be rotated 360° flexibly.
