Electric Hoist 500kg
  • Electric Hoist 500kgElectric Hoist 500kg
  • Electric Hoist 500kgElectric Hoist 500kg
  • Electric Hoist 500kgElectric Hoist 500kg
  • Electric Hoist 500kgElectric Hoist 500kg
  • Electric Hoist 500kgElectric Hoist 500kg

Electric Hoist 500kg

Built to the highest standards using premium materials, the Electric Hoist 500kg is designed to withstand even the toughest conditions. It features a durable steel frame, reinforced wire rope and a powerful motor that provides smooth and reliable performance every time.

Send Inquiry    PDF DownLoad

Product Description


Built to the highest standards using premium materials, the Electric Hoist 500kg is designed to withstand even the toughest conditions.  It features a durable steel frame, reinforced wire rope and a powerful motor that provides smooth and reliable performance every time.This hoist also features a user-friendly control system that allows for precise operation, making it easy to lift, lower and position heavy objects with ease.  The control system includes a convenient hand-held remote control that lets you operate the hoist from a safe distance, providing added safety and convenience.



Product Specification

Model

0.5-01s

01-01s

01-02s

02-01s

02-02s

03-01s

03-02s

03-03s

05-02s

Capacity(ton)

0.5

1

1

2

2

3

3

3

5

Lifting speed(m/min)

7.2

6.8

3.6

6.6

3.4

5.6

3.3

2.2

2.8

MotorPower(kw)

1.1

1.5

1.1

3.0

1.5

3.0

3.0

1.5

3.0

Ratation Speed(r/min)

1440

Insulation Grade

F level

Travelling Speed(m/min)

Slow 11m/min &Fast 21m/min

Power supply

3-phase 380V 50HZ

Control Voltage

24V 36V 48V

No.of load Chain

1

1

2

1

2

1

2

3

2

Spec Load chain(mm)

6.3

7.1

6.3

10

7.1

11.2

10

7.1

11.2

Net Weight(kg)

47

65

53

108

73

115

131

85

145

I -beam(mm)

75-125

75-178

75-178

82-178

82-178

100-178

100-1788

100-178

112-178


Feature And Application


One of the key benefits of the Electric Hoist 500kg is its versatility.  This hoist is ideal for use in a variety of settings, including construction sites, warehouses, factories, and more.  It is also perfect for lifting heavy items such as engines, generators, and heavy machinery.In addition, the Electric Hoist 500kg is easy to install and operate, making it suitable for both novice and experienced users.  The simple design requires minimal maintenance, which saves you time and money in the long run.



Product Details

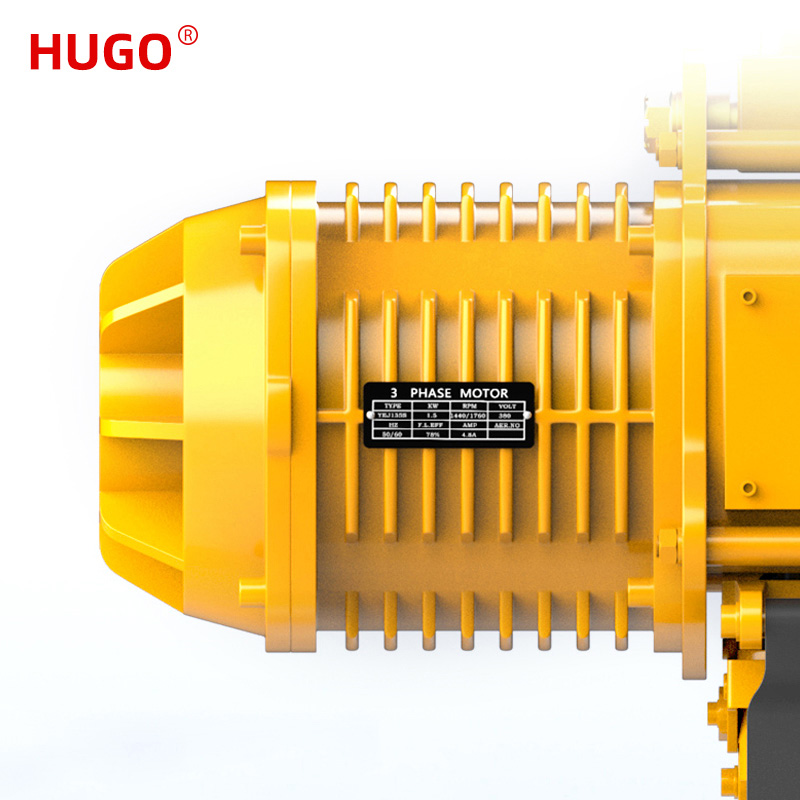

The electric hoist 500kg is made of aluminum alloy shell, light but hard ,the cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service,the integral enclosed structure is applicable to places like chemical plant and electroplate factory.

Electric Hoist 500kg

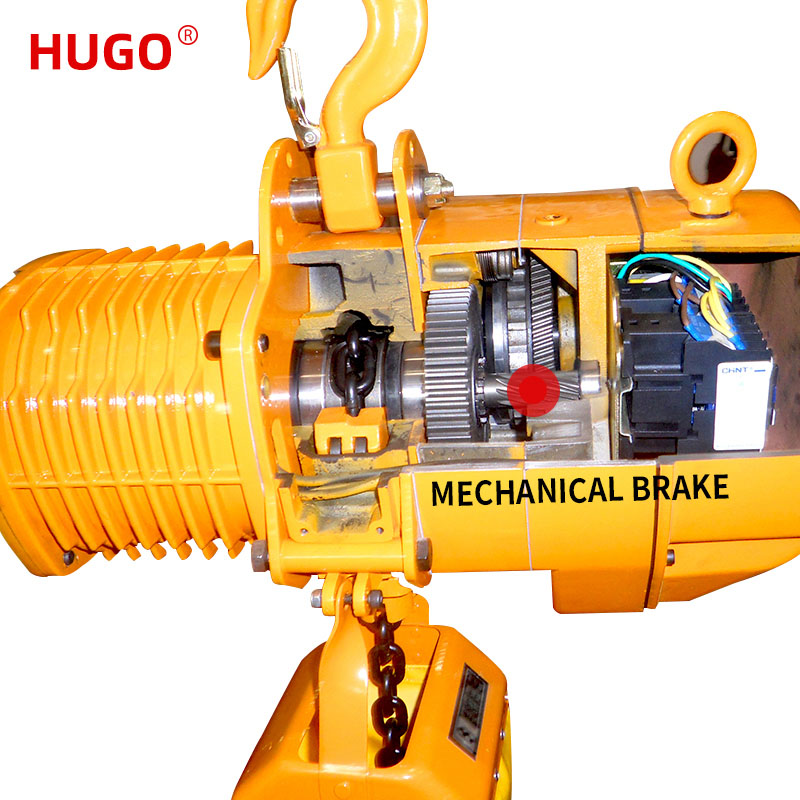

Side magnetic braking device,the magnetic force generator is the latest design which is featured for generating magnetic force.it allows instant brake as soon as the electric power is cut off,thus the braking safety while loading is guaranteed.

Electric Hoist 500kg

The electric hoist 500kg limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.

Electric Hoist 500kg

The chain shall adopt the imported G80 ultra heat-treatable aluminum alloy chain, it can be safety used in poor environments such as rain ,sea water and chemicals

Electric Hoist 500kg

The electric hoist 500kg hook is hot forging with perfect strength that is hard to break .the operation safety of the lower hook is ensured by its 360 degrees rotation safety tongue piece.

Electric Hoist 500kg

the push button is waterproof push button .it is light and durable,it is 0.1kg, easy for operating .

Electric Hoist 500kg
