Electric Scissor Lift Table
  • Electric Scissor Lift TableElectric Scissor Lift Table
  • Electric Scissor Lift TableElectric Scissor Lift Table
  • Electric Scissor Lift TableElectric Scissor Lift Table
  • Electric Scissor Lift TableElectric Scissor Lift Table
  • Electric Scissor Lift TableElectric Scissor Lift Table

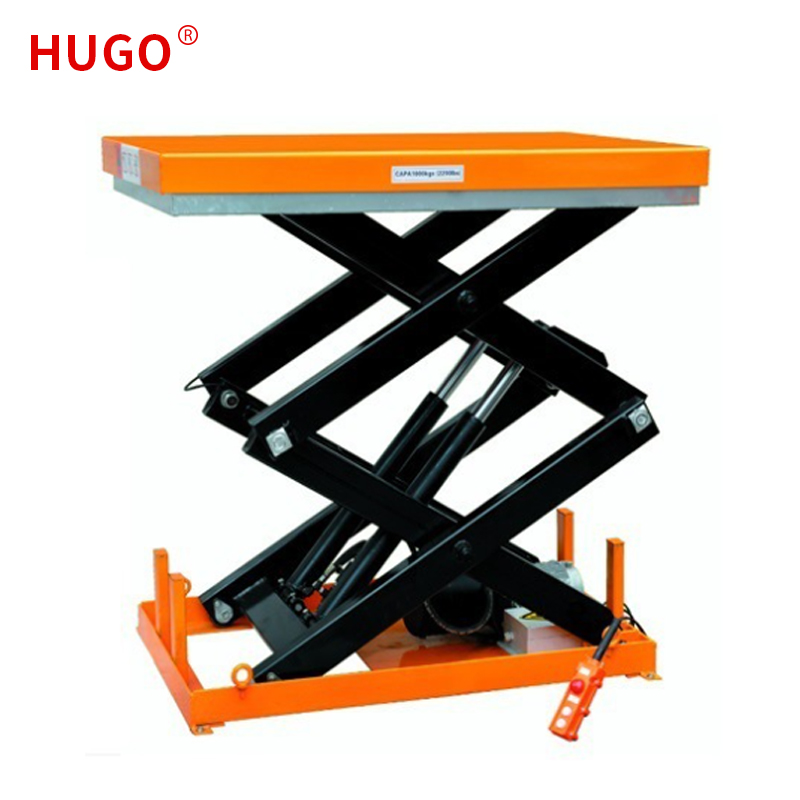

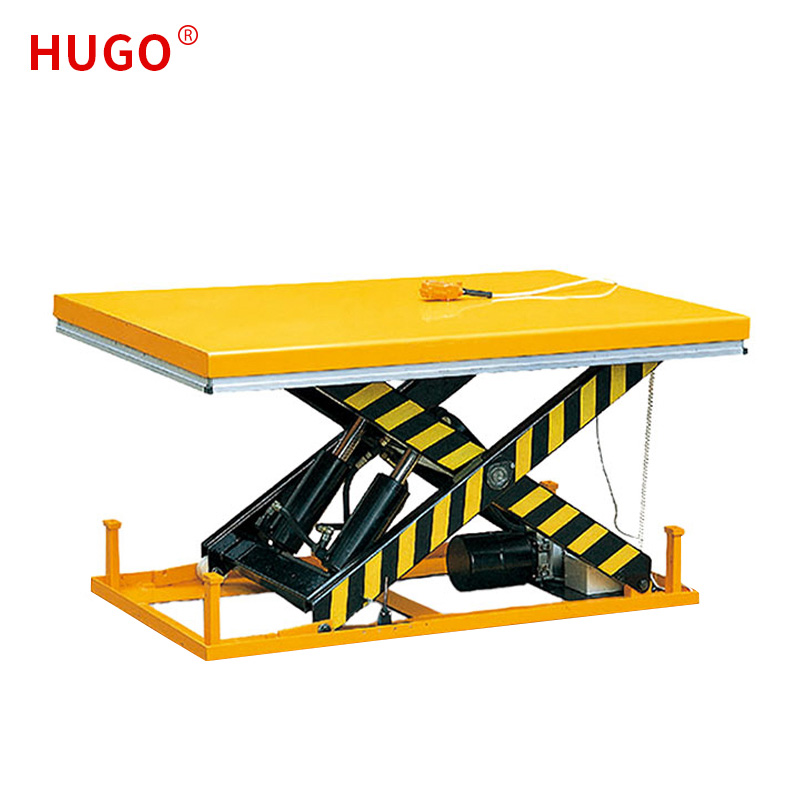

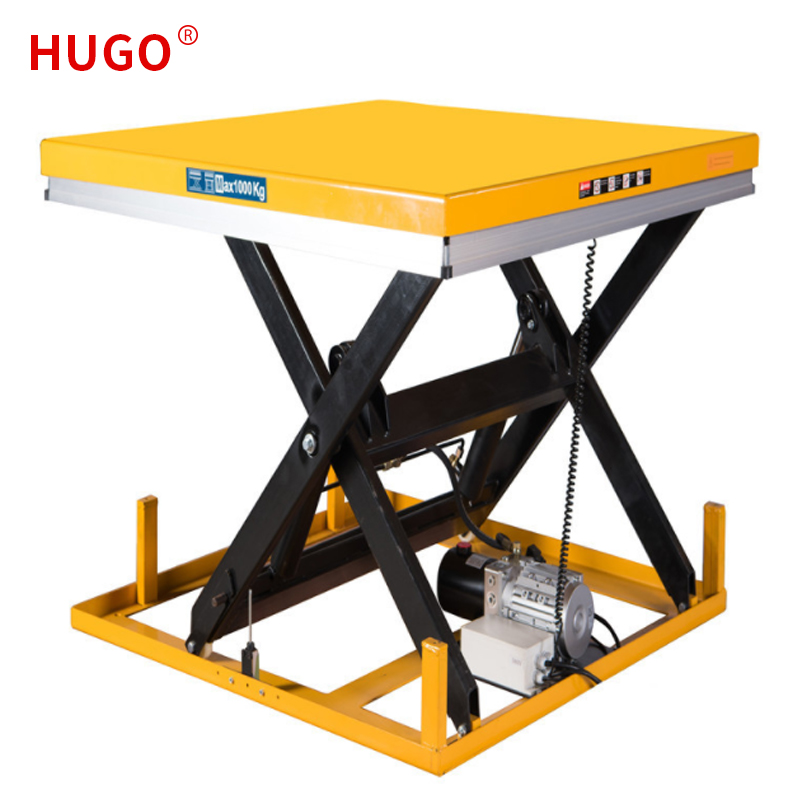

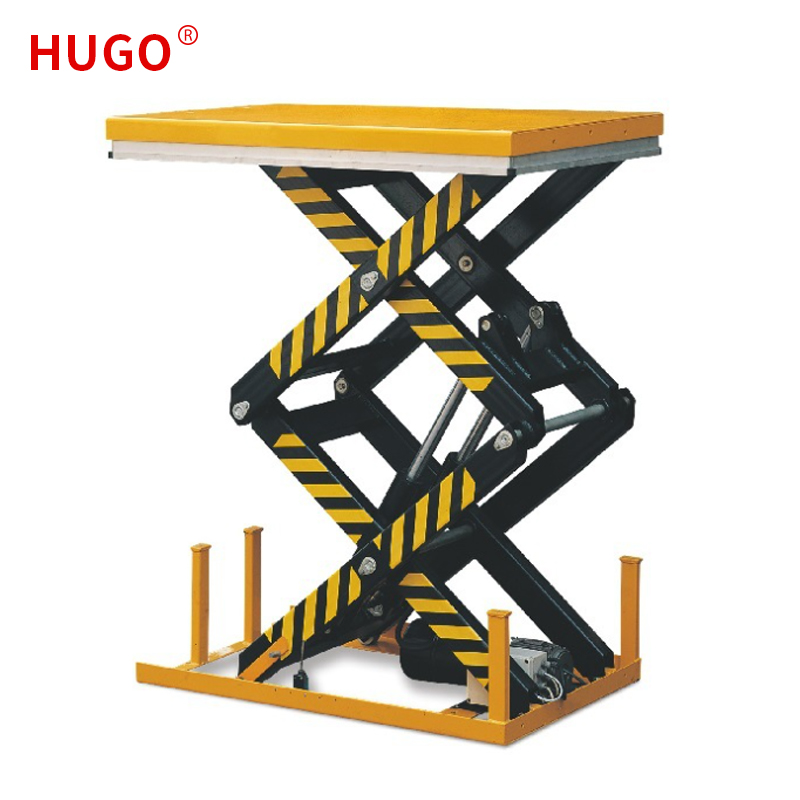

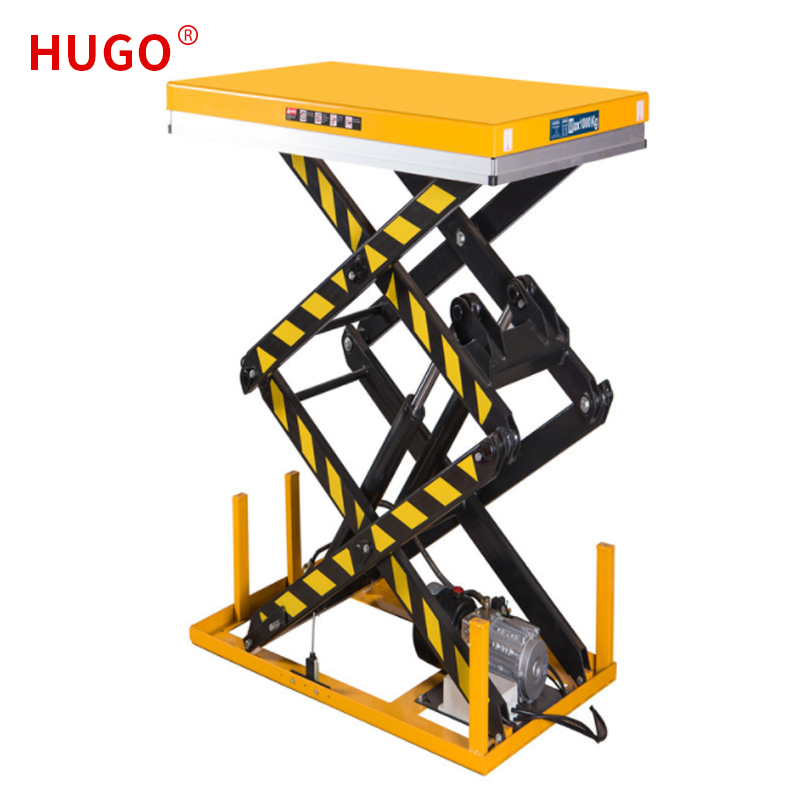

Electric Scissor Lift Table

The Electric Scissor Lift Table is a versatile mechanical device used for lifting and unloading tasks. Powered by a hydraulic lifting system, this platform operates with a shear fork mechanical structure, ensuring remarkable stability, a broad operating platform, and substantial weight-bearing capacity. These features enable extensive high-altitude operations and accommodate multiple individuals working simultaneously, enhancing efficiency and safety during elevated tasks.

Send Inquiry    PDF DownLoad

Product Description


Electric Table Lifters come in various types, such as scissor lifting platforms, aluminum alloy lifting platform vehicles, sleeve cylinder lifting platforms, curved arm lifting platforms, fixed and mobile lifting platforms, stage lifting platform vehicles, and more. Specifically, the Electric Scissor Table Lifter serves as specialized equipment for vertical lifting in high-altitude operations, finding extensive indoor and outdoor applications. Its versatility caters to equipment maintenance, mechanical installation, and building upkeep across stations, docks, bridges, halls, and industrial plants.

Primarily utilized in the logistics industry and production lines, it facilitates the lifting, loading, and unloading of goods between different floors, aiding in stage and console elevation. This product is characterized by a stable structure, minimal failure rate, reliable operation, safety, efficiency, and straightforward maintenance. Featuring a novel design and convenient mechanism, it's suitable for various tasks such as barrel handling, stacking, and transportation in factories, workshops, warehouses, and oil depots. Particularly beneficial in chemical and food workshops for dumping or batching, it significantly improves work efficiency, reduces labor intensity, and can be adapted for various heavy object loading, unloading, and lifting operations. This multifunctional machinery represents an innovative and ideal solution for diverse loading and unloading tasks.




Product Specification

Model

Capacity

Lowered Height

Raised Height

Platform Size

Base Frame Size

Lift Time

Power Pack

Net Weight



(kg)

(mm)

(mm)

(mm)

(mm)

(second)



(kg)

HW1001

1000

205

990

820×1300

680×1266

20~25

380V/50HZ, AC 1.1kw

160

HW1002

1000

205

990

1000×1600

680×1266

20~25

186

HW1003

1000

240

1300

850×1700

680×1600

30~35

200

HW1004

1000

240

1300

1000×1700

680×1600

30~35

210

HW1005

1000

240

1300

850×2000

680×1600

30~35

212

HW1006

1000

240

1300

1000×2000

680×1600

30~35

223

HW1007

1000

240

1300

1700×1500

1600×1362

30~40

380V/50HZ, AC 1.1kw

365

HW1008

1000

240

1300

2000×1700

1600×1362

30~40

430

HW2001

2000

230

1000

850×1300

785×1255

20~25

380V/50HZ,AC 2.2kw

235

HW2002

2000

230

1000

1000×1600

785×1255

20~25

268

HW2003

2000

250

1300

850×1700

785×1630

25~35

380V/50HZ,AC 2.2kw

289

HW2004

2000

250

1300

1000×1700

785×1630

25~35

300

HW2005

2000

250

1300

850×2000

785×1630

25~35

300

HW2006

2000

250

1300

1000×2000

785×1630

25~35

315

HW2007

2000

250

1400

1700×1500

1630×1435

25~35

380V/50HZ,AC 2.2kw

415

HW2008

2000

250

1400

2000×1800

1630×1435

25~35

500



Feature And Application

Heavy Duty Design.HW series lift tables meet EN norm and  ANSI/ASME safety standards.These models can be used in above-floor or in-floor pit applications.Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.Low-tention (24V) control box with up-down buttons.Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.Safety clearance between scissors to prevent trapping during operation.Self lubricating bushings on pivot points.Removable lifting eye to facilitable handling and lift table installation.High quality AC power packs are made in Europe.



Product Details

(1) Battery indicator

Electric Scissor Lift Table

5. lift control

Electric Scissor Lift Table

(2) PU wheels

Electric Scissor Lift Table

(4)split oil pump

Electric Scissor Lift Table
