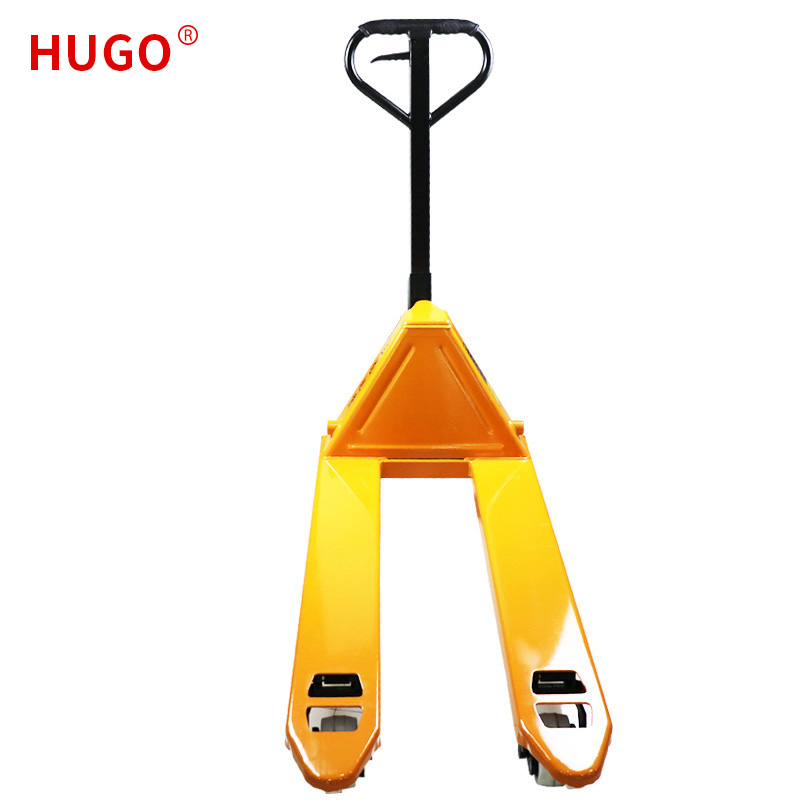

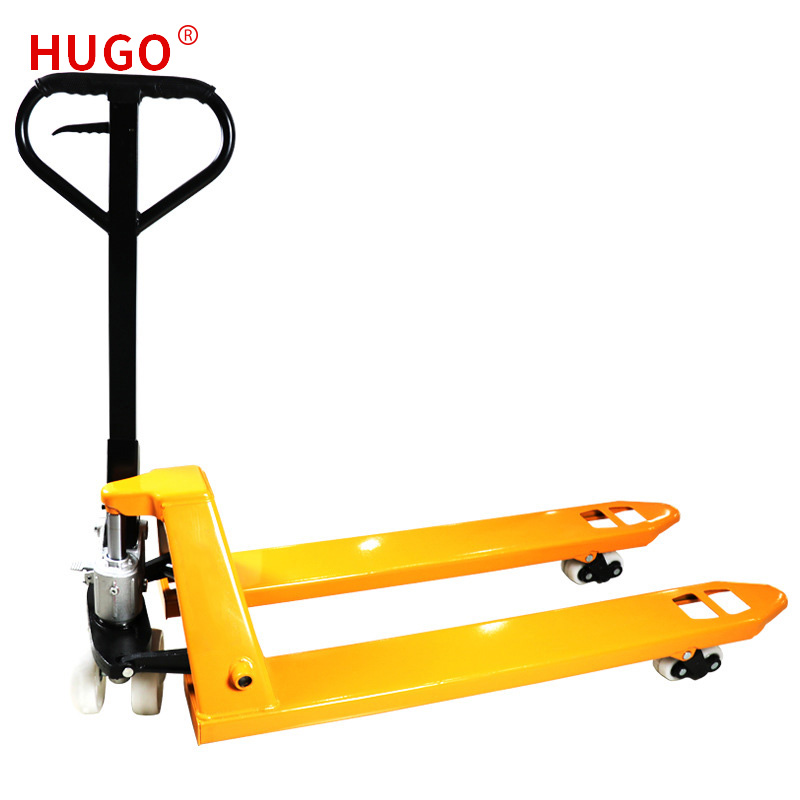

Hand Pallet Jack
  • Hand Pallet JackHand Pallet Jack
  • Hand Pallet JackHand Pallet Jack
  • Hand Pallet JackHand Pallet Jack
  • Hand Pallet JackHand Pallet Jack
  • Hand Pallet JackHand Pallet Jack
  • Hand Pallet JackHand Pallet Jack
  • Hand Pallet JackHand Pallet Jack

Hand Pallet Jack

Hand Pallet Jack is a top-of-the-line tool that meets all of your material handling needs. With its unbeatable load capacity, user-friendly design, and low-maintenance construction, it's no wonder why it's one of the most popular choices for warehouse operators and transportation professionals around the world.

Send Inquiry    PDF DownLoad

Product Description

Product Introduction:

Hand Pallet Jack is a top-of-the-line tool that meets all of your material handling needs.  With its unbeatable load capacity, user-friendly design, and low-maintenance construction, it's no wonder why it's one of the most popular choices for warehouse operators and transportation professionals around the world.


Pallet Jack technical parameters

Model

HC-AC2.0

HC-AC2.5

HC-AC3.0

HC-AC5.0

Capacity (kg)

2000

2500

3000

5000

Min. Fork height (mm)

80

80

80

80

Max. Fork height(mm)

200

200

200

200

Lifting Height (mm)

120

120

120

120

Fork length (mm)

1150/1220

1150/1220

1150/1220

1150/1220

Single fork height (mm)

160

160

160

160

overall forks Width (mm)

550/685

550/685

550/685

550/685

load bearing wheel (mm)

80*70

80*70

80*70

80*70

Steer wheel (mm)

180*50

180*50

180*50

180*50

Truck Weight (kg)

73-92

73-92

73-92

73-130

Quantity/20 GP

180/144

180/144

180/144

180/144

Quantity/40 GP

336/360

336/360

336/360

336/360


Pallet Jack for sale Feature And Application

Our hand pallet jack comes in different weight capacities, including 2000kg, 2500kg, 3000kg, and 5000kg, providing you with plenty of options to suit your specific requirements.With a common fork size of 550*1150mm or 685*1220mm, our hand pallet jack is compatible with a wide range of pallet sizes.  What's more, we also provide custom options for those requiring a different fork size. Our pallet jack features a high-quality paint finish that ensures it remains visually appealing even after years of use.  It is also easy to maintain and clean, making it a practical choice for any warehouse, factory or construction site.

1. Our hand pallet jack use thick fork 4mm thickness, with 4 pieces 75cm long channel reinforced frame ensures fork alignment is not compromised

2. for the welding machine weld , the welding seam leveling increase the product carrying capacity and make its out look more beautiful.

3. Small nylon entry and exit rollers prevent physical exertion of the operator and protect load rollers and pallet This makes it easier to move heavier loads on the hand pallet jack resulting in less effort / strain for the operator

4. The steer and load wheels are engineered with high quality components and bearings to provide a low rolling resistance. Our pallet jack for sale have more optional for your choice. Such as plastic, nylon Pu and Rubber..

5. The shape and thickness of the handle along with the design and placement of the control lever reduces operator fatigue and improves productivity. The neutral lever position releases tension on the handle for easier maneuvering. Pallet jack for sale we have two different handle shape.

6. Rocker arm widened and thickened can ensure the long life.
