Electric Pallet Stacker
  • Electric Pallet StackerElectric Pallet Stacker
  • Electric Pallet StackerElectric Pallet Stacker
  • Electric Pallet StackerElectric Pallet Stacker
  • Electric Pallet StackerElectric Pallet Stacker
  • Electric Pallet StackerElectric Pallet Stacker

Electric Pallet Stacker

Electric pallet stackers find extensive applications across diverse industrial settings such as factory workshops, warehouses, distribution centers, circulation hubs, ports, stations, and airports. They play a crucial role in efficiently loading, unloading, and handling palletized goods within cabins, carriages, and containers. This equipment stands as an essential asset facilitating pallet and container transportation, making it indispensable in various logistics operations.

Send Inquiry    PDF DownLoad

Product Description


Electric pallet stackers serve as prevalent equipment found in factory workshops, warehouses, distribution centers, circulation hubs, ports, stations, airports, and similar environments. Their versatility allows them to navigate cabins, carriages, and containers, effectively managing the loading, unloading, and movement of palletized goods. This equipment stands as an essential component in both pallet and container transportation operations.

On the other hand, stacker trucks encompass a range of wheeled vehicles utilized for loading, unloading, stacking, and transporting palletized goods over short distances.




Products Specification



Main Parameters of CDD Stacker

Basic parameters

1

Product model


CDD


2

Driving mode


Electric

3

Operation method


Stand-on model

4

Rated load

Q kg

1000、1500、2000

5

Load center

C mm

500

6

Axle base

Y mm

1480

7

Dead weight (excluding battery)

kg

680

Wheel

1

Tire


PU wheel

2

Dimensions of driving wheel

mm

∅250×80

3

Size of front wheel

mm

∅80×70

4

Dimensions of balance wheel

mm

∅125×50

5

Quantity of wheels (front/rear) (x= driving wheel)


1x+2/4

6

Front wheel track

mm

510

7

Rear wheel track

mm

620

Basic dimension

1

Overall height (when the fork is the lowest)

h1 mm

2080

2

Overall height (when the fork is the highest)

h2 mm

3380

3

Lifting height

h3 mm

3000

4

Free lifting height

h4 mm

0

5

Ground height of fork (when the fork is the lowest)

h5 mm

85

6

Ground height of the operating handle (maximum / minimum)

h6 mm

1450/1020

7

Total length

L1 mm

2030

8

Distance from the front end of the fork to the front part

L2 mm

1000

9

Total width

b1 mm

860

10

Dimensions of fork (metal plate)

s/e/Imm

160*50*1000

11

Outer width of fork

b3 mm

680/550

12

Minimum ground clearance

m mm

35

13

Width of the right-angle stacking channel, tray 1,000x1,200 (1,200: along the fork edge)

Ast mm

2500

14

Turning radius

R mm

1800


Property

1

Driving speed full load / no load

km/h

4.5/5.5

2

Lifting speed full load / no load

mm/s

50/100

3

Load-lowering speed full load / no load

mm/s

140/135

4

The maximum gradeability full load / no load

%

5.0/8.0

5

Brake mode


Electromagnetic brake

Motor

1

Driving motor power

kw

1.5

2

Lifting motor power

kw

2.2

3

Battery voltage/capacity

V/Ah

24/120/210

4

Power cell weight

kg

70/195


Feature And Application

Electric Pallet Stacker refer to various wheeled trucks for loading and unloading, stacking, stacking and short-distance transportation of palletized goods.


Products Details

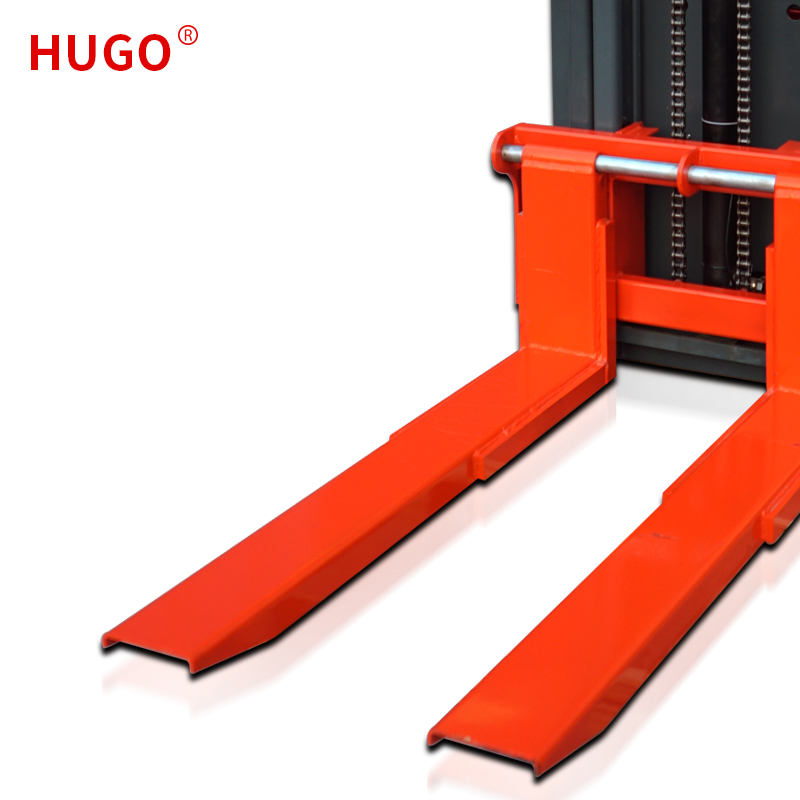

The forks of the equipment are crafted from manganese steel, renowned for its exceptional toughness and durability. These forks are reinforced at the bottom with stiffeners, enhancing their robustness for prolonged use.

Inside the fork, there are adjustable screws provided for customization. Additionally, the fork rocker, composed of a galvanized solid rod, offers robust strength, resistance to rust, and heightened durability, ensuring prolonged reliability.



Electric Pallet Stacker


The wheel frame is precision-molded for enhanced stability during usage, ensuring a more reliable performance.

Utilizing polyurethane (PU) wheels, the equipment benefits from their sound-absorbing properties, providing a quieter operation.

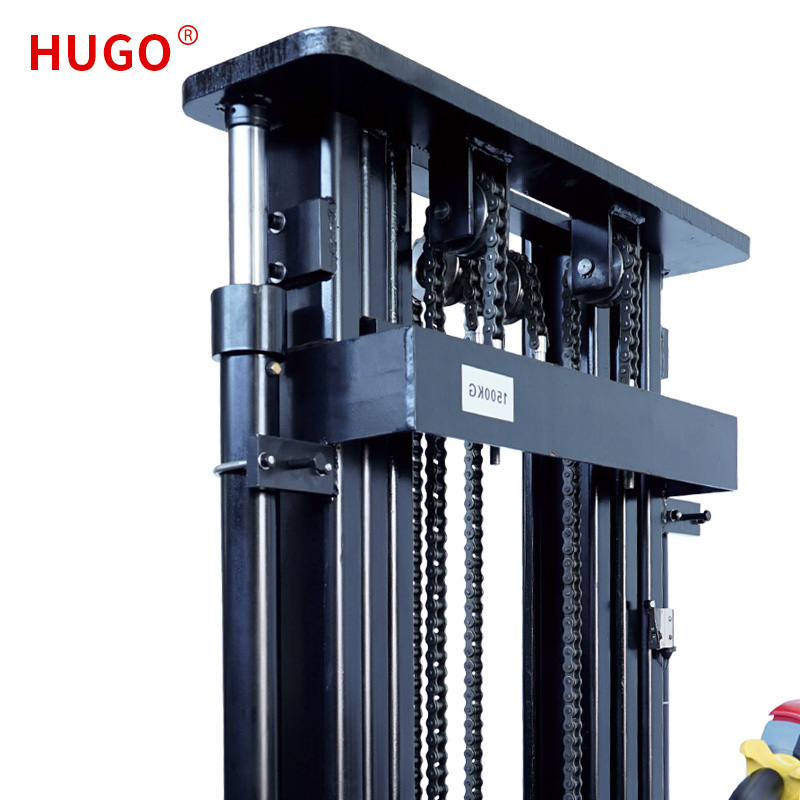

Crafted from genuine C-shaped steel and manganese steel, the door frame is fortified with reinforcing ribs, preventing deformation and breakage for prolonged durability.

The chain employed is of national standard quality, rigorously tested for robustness and strength to withstand heavy loads.

The oil cylinder is equipped with sealed oil pipes, ensuring zero oil or air leakage, simplifying maintenance procedures.



Electric Pallet Stacker

Motor and charger Highly equipped with high-quality brand batteries, special batteries for electric forklifts. It can work continuously for 5-7 hours. The working time of the battery varies slightly depending on the specific carrying capacity.

The outer cover adopts an integral forming process, with a reinforcement layer on the outside, which is not easy to deform and change color.

Electric Pallet Stacker

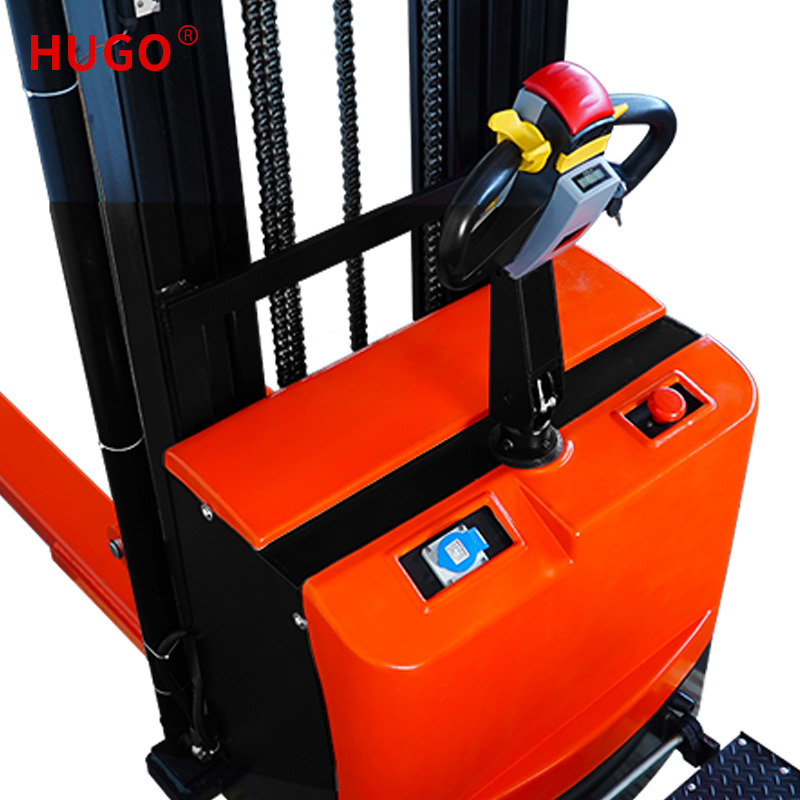

Our equipment features a handle designed distinctively from the thin handles commonly found in the market, which are prone to breakage. Our handle is uniquely crafted using a special mold, ensuring robustness and durability. It integrates a switch button, a horn button, fork adjustment controls for lifting and lowering, and an anti-collision switch. This setup not only offers convenience but also enhances safety during operation.

Electric Pallet Stacker
