1 Ton Electric Chain Hoist

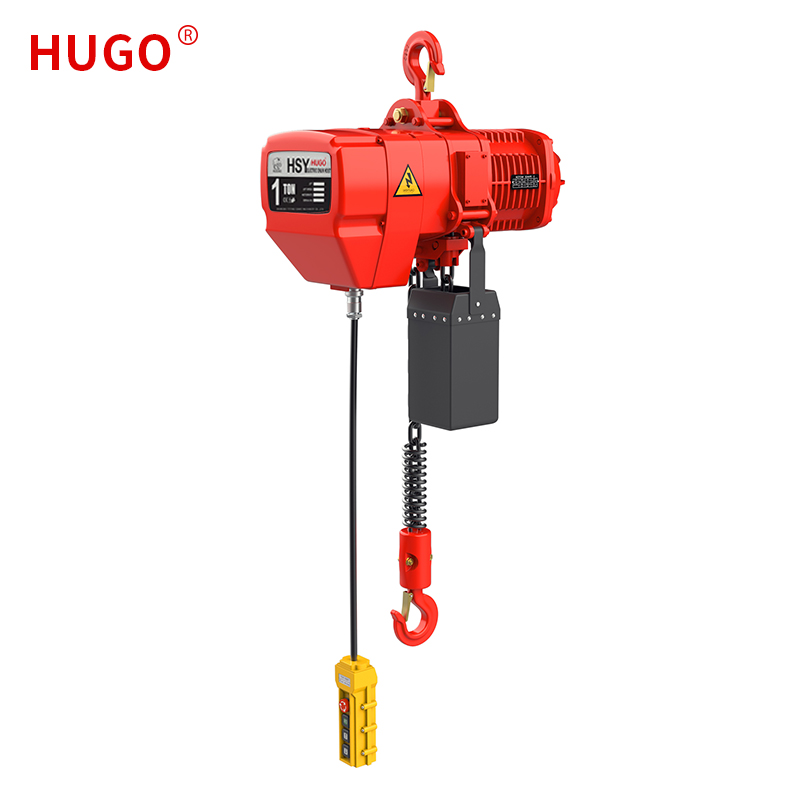

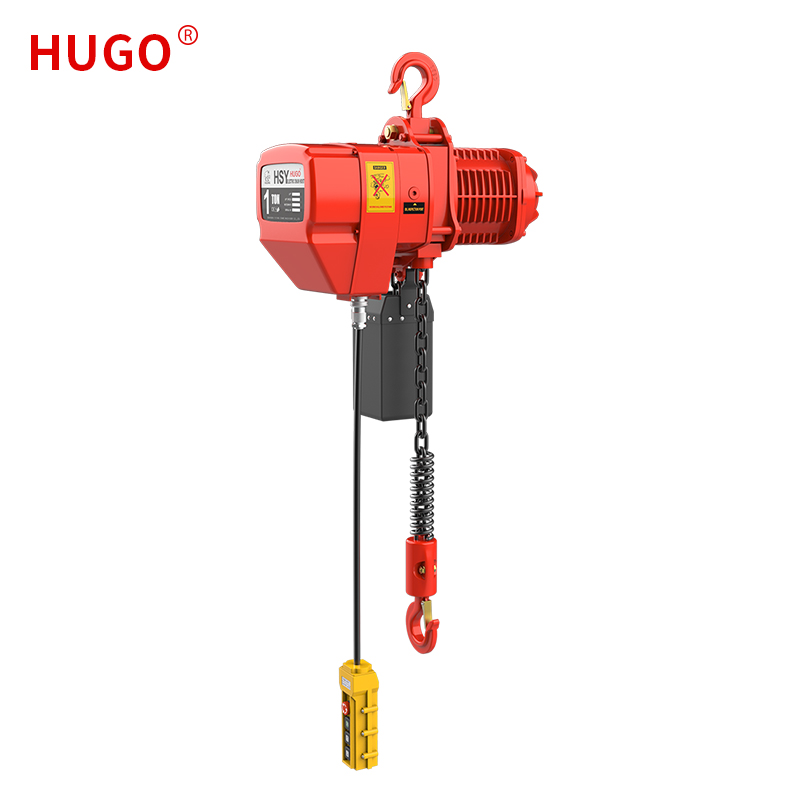

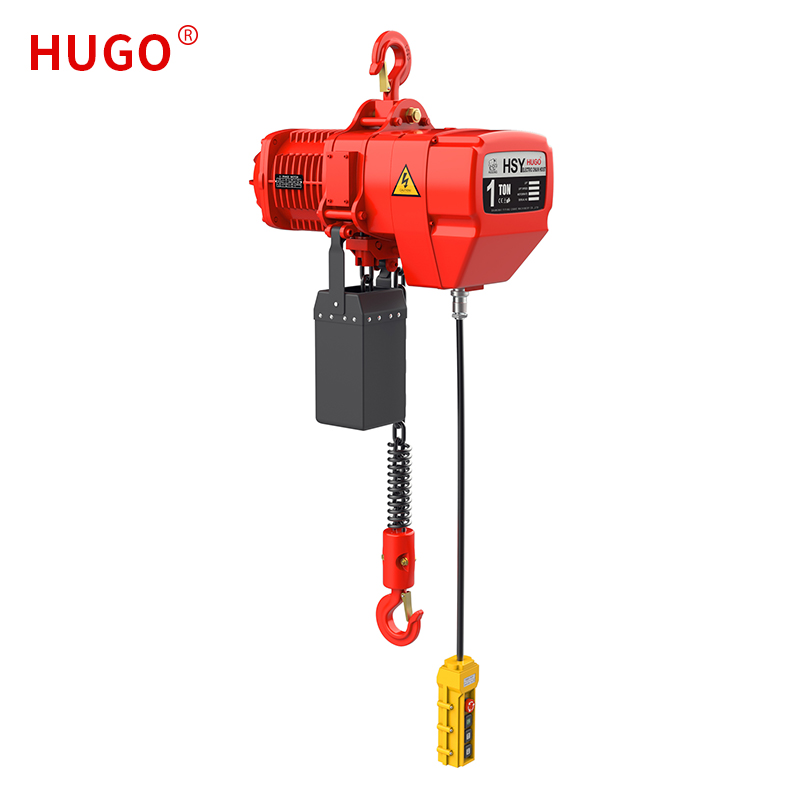

The 1 Ton Electric Chain Hoist is a compact and lightweight lifting device comprising a motor, a transmission mechanism, and a sprocket. Crafted in adherence to international standards, this hoist features an aesthetically pleasing body that combines durability with an attractive appearance.

Send Inquiry    PDF DownLoad

Product Description


The 1 Ton Electric Chain Hoist is a compact and lightweight lifting apparatus composed of a motor, transmission mechanism, and sprocket. These hoists conform to international standards, boasting an attractive and robust body design.

Key Features of the 1 Ton Electric Chain Hoist: It showcases an advanced structural design, compact dimensions, lightweight build, dependable performance, user-friendly operation, and versatile applications. Excelling in lifting heavy objects, equipment maintenance, and cargo handling, this hoist can be easily installed on various surfaces such as I-beams, curved rails, cantilever guide rails, and fixed lifting points. Widely employed across major industries including factories, warehouses, wind power generation, logistics, docks, and construction sites.




Specification

Model

0.5-01s

01-01s

01-02s

02-01s

02-02s

03-01s

03-02s

03-03s

05-02s

Capacity(ton)

0.5

1

1

2

2

3

3

3

5

Lifting speed(m/min)

7.2

6.8

3.6

6.6

3.4

5.6

3.3

2.2

2.8

MotorPower(kw)

1.1

1.5

1.1

3.0

1.5

3.0

3.0

1.5

3.0

Ratation Speed(r/min)

1440

Insulation Grade

F level

Travelling Speed(m/min)

Slow 11m/min &Fast 21m/min

Power supply

3-phase 380V 50HZ

Control Voltage

24V 36V 48V

No.of load Chain

1

1

2

1

2

1

2

3

2

Spec Load chain(mm)

6.3

7.1

6.3

10

7.1

11.2

10

7.1

11.2

Net Weight(kg)

47

65

53

108

73

115

131

85

145

I -beam(mm)

75-125

75-178

75-178

82-178

82-178

100-178

100-1788

100-178

112-178


Feature And Application


The 1T electric chain hoist integrates a powder metallurgy clutch for overload protection, while employing a disc-type DC electromagnetic field brake known for its robust braking torque, stability, rapid response, and low noise. Primarily utilized in major industries like factories, warehouses, wind power generation, logistics, docks, and construction sectors, these hoists facilitate lifting heavy objects, aiding in machine repair or maintenance tasks.

Operated via ground-following buttons by operators or remotely controlled from a control room through wired or wireless setups, the 1T electric chain hoist offers versatile operation methods. It can be employed for fixed suspension purposes and adapted with an electric monorail trolley or hand-push/hand-pull monorail trolley for mobility and transport within diverse workspaces.




Details

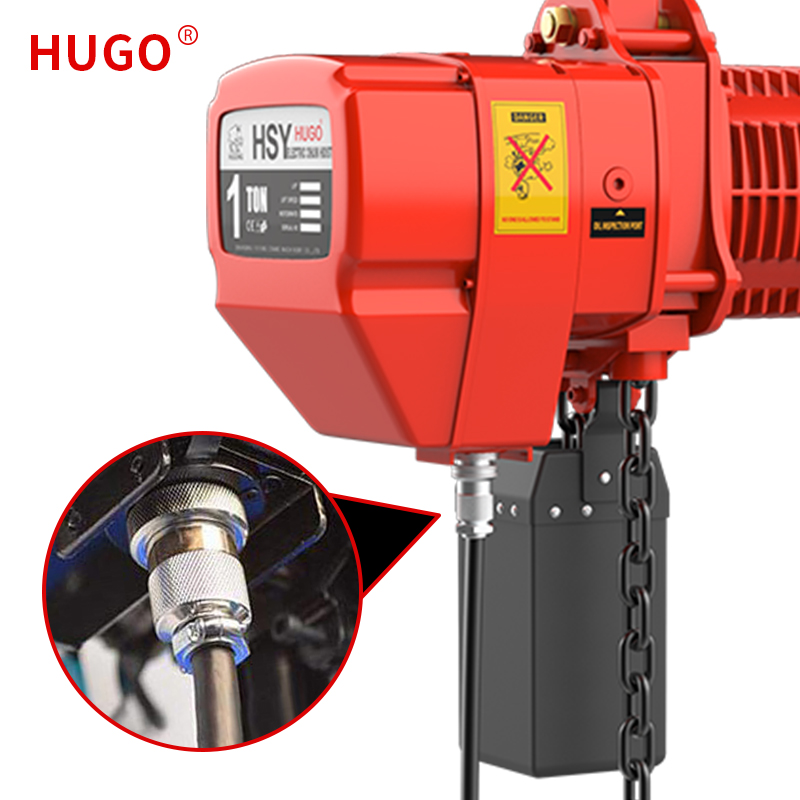

The 1 ton electric chain hoist is all produced in accordance with international standards, with aluminum alloy shell, beautiful appearance, strong and durable, and special heat sink.

1 Ton Electric Chain Hoist

The chain of the 1-ton electric chain hoist is made of low-carbon alloy steel, which makes the chain more tough, stronger and more wear-resistant, ensuring safety during work.

1 Ton Electric Chain Hoist

The 1 ton electric chain hoist hook is hot forged, with excellent strength and not easy to break. It is equipped with a safety tongue to ensure safety.

1 Ton Electric Chain Hoist

The 1 ton electric chain hoist uses a waterproof button switch, which is light and durable

1 Ton Electric Chain Hoist

The one-ton electric chain hoist has a limit switch device, and there are limit switch devices on the upper and lower sides of the hoist. The automatic stop is used to prevent the chain from exceeding and ensure safety

1 Ton Electric Chain Hoist
